CJay Combo Dump

Model CT-816-HYD
16 ft. overall deck length
2 of 7000 lbs. torsion rubber axles
Electric brakes on all wheels
16” radial tires c/w white mod wheels
Steel checker-plate fenders

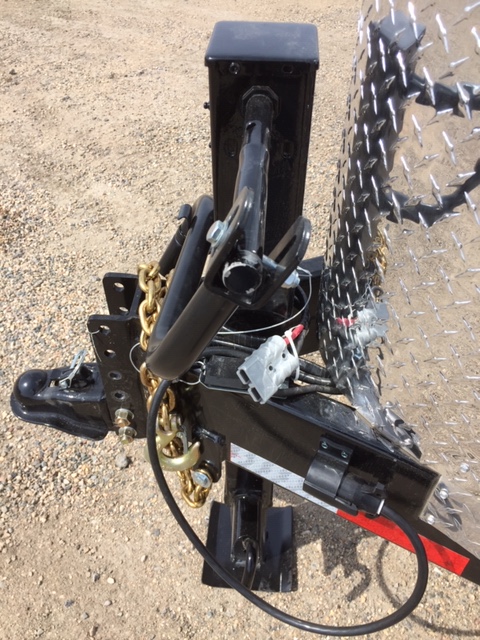

2 5/16” adjustable ball coupler
12K lbs. drop foot jack
HSS tubing main frame
HSS tubing cross-members
Protected wiring with soldered and heat-shrink sealed connections
Breakaway kit c/w charger
Safety chains c/w hooks
Rubber mounted, recessed LED lighting
Hydraulic dump box:
10-gauge steel formed dump box
24” high sides & front x 82” wide inside x 8 ft. long

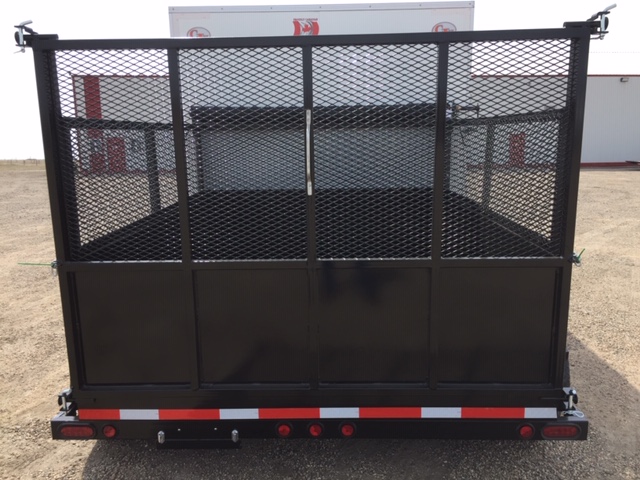

60” high rear ramp/end gate c/w expanded mesh (two-way gate)
Two – 4” double acting hydraulic cylinder lift system

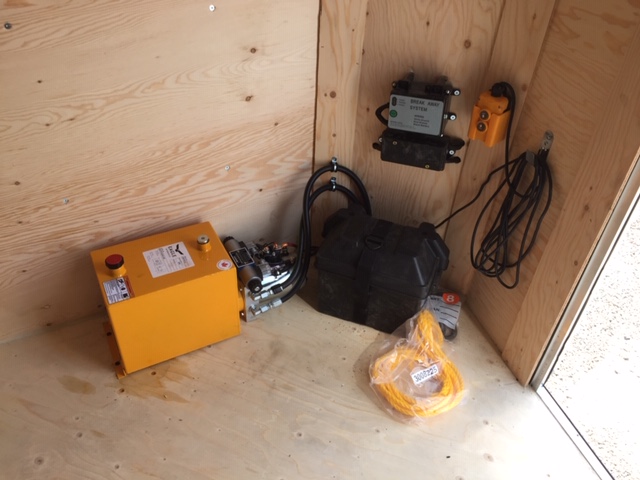

12-volt hydraulic power pack c/w remote
Deep cycle 12-volt battery c/w quick connect charge cable trailer ends
4 of D-ring (one of in each corner)
24” high mesh bolt-on side kit (includes sides & front on dump box)
Mesh roll up tarp assembly (Roll up Tarp)
Enclosure: White
96” wide x 83” interior height x 8 ft. long plus V-nose

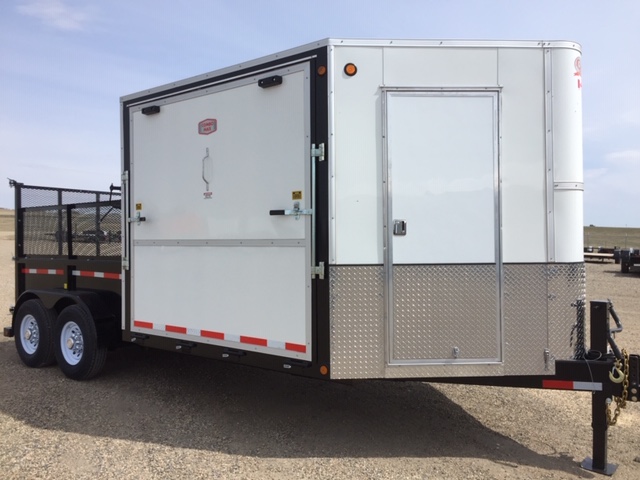

30” wide walk in door with step – located in V-nose on passenger side
85” wide spring assisted passenger side ramp door c/w transition flap (85” wide x 78” high)
1 of LED 12-volt interior light located at walk in door

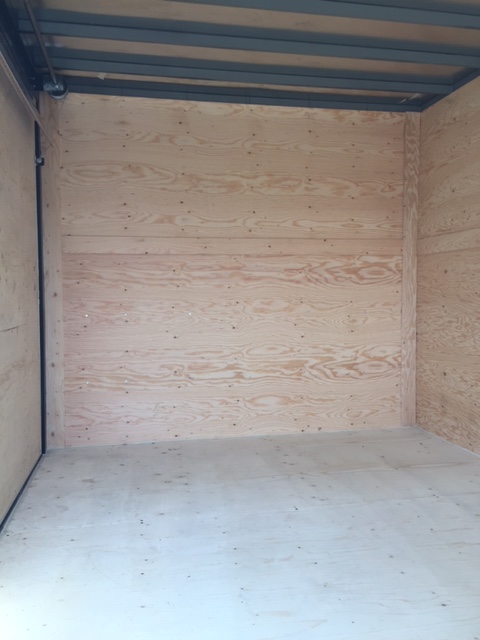

3/8” plywood on walls & ¾” plywood on floor
Also Available in:
Variety of Sizes, Colors and Options

**Finance and Lease Options
