CJay (7’x12′) – Used for Living Quarters
Model FX9-712-72-T60 – flat/radius front
7 ft. wide x 12 ft. long x 72” rear door height (77” interior height)
2 of 6000 lbs. torsion rubber ride axles – 45 degree down
Electric brakes on all wheels

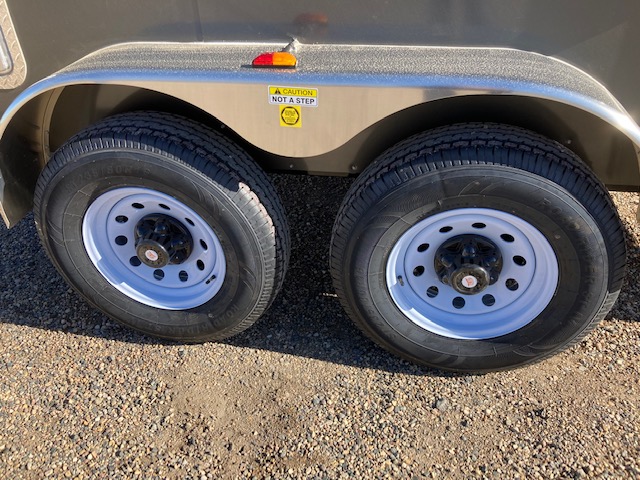

ST225/75R15 radial tires
White Spoke wheels c/w center caps
Adjustable 2 5/16” ball coupler
7000 lbs. drop leg jack at front of trailer
Aluminum tandem axle fenders

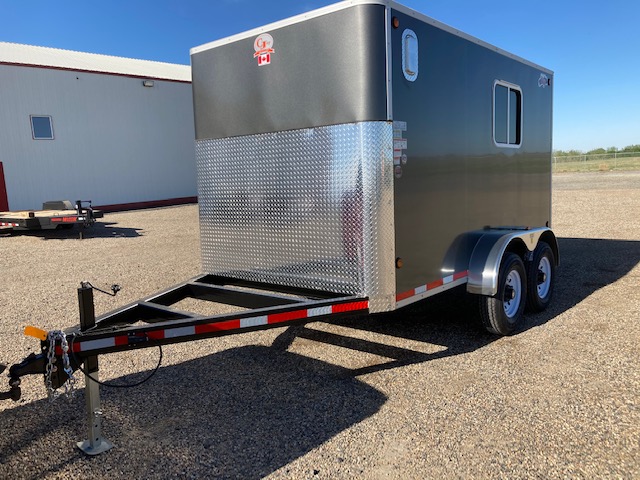

30” High aluminum checkerplate rock guard

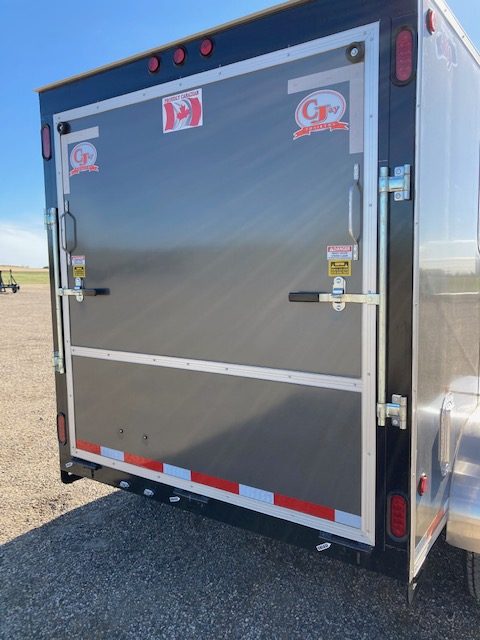

Rear Cargo Doors c/w cam lock

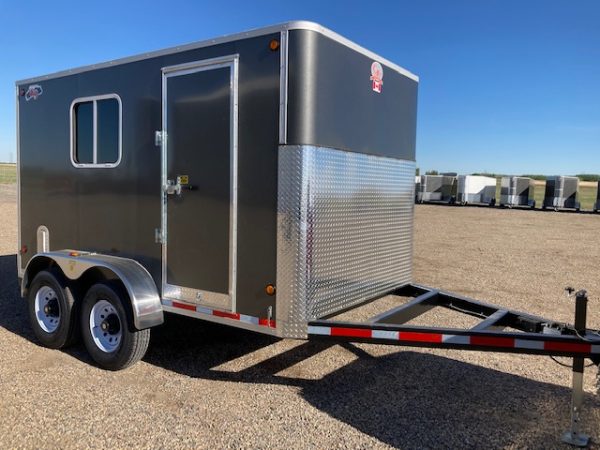

30” wide side door c/w flush mount locking latch c/w bar lock
Side as far back towards the fender as possible
Smooth rivetless exterior aluminum sheeting
One-piece aluminum roofing
Tubing mainframe & SLB I-beam crossmembers on 16” centers
Structural tubing interior framing – wall uprights & roof bows on 16” centers

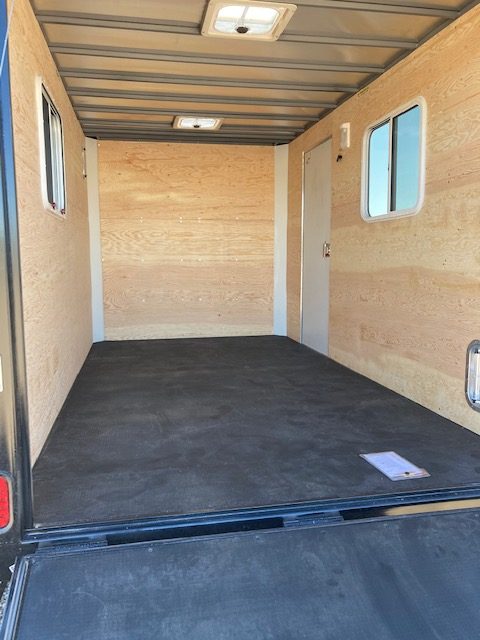

3/8” interior plywood wall
¾” interior plywood flooring
1 of 12-volt Interior light
Protected wiring with soldered and heat shrink sealed connections
Breakaway kit c/w charger / Safety Chain c/w hooks
Rubber Mounted, recessed LED lighting
Some Optional features:
Upgrade to 16” tires/wheels (ST235/80R16 load range E)
Spring assisted rear ramp door – 72” rear door height
24” x 30” tinted window c/w slider & screen
24” x 30” escape style tinted window c/w slider & screen
RV style roof vent
Aluminum two-way wall vents
Tred-extreme flooring (Including ramp door)
A-frame hitch to be 6 ft. long instead of std. hitch length
48” high aluminum checkerplate in lieu of std. 30” high
Also Available in:
Ramp Doors or Barn Doors
Variety of Colors and options
**Finance and Lease Options
