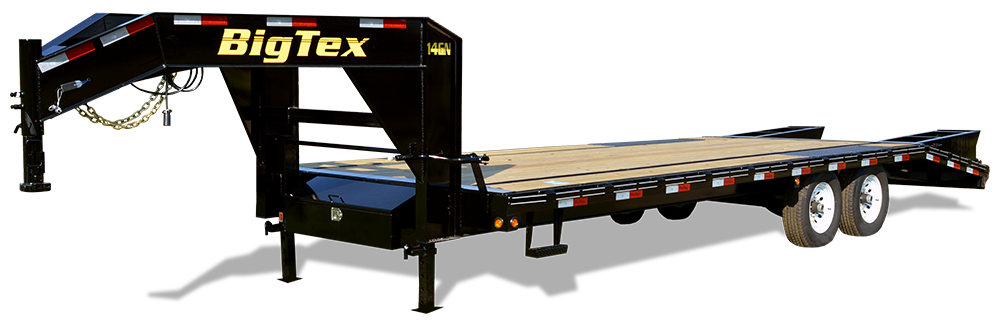

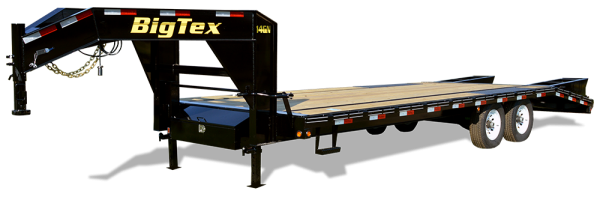

Big Tex 22GN HD 25ft + 5ft Tandem Dual Axle Gooseneck

Big Tex 22GN HD 25ft + 5ft Tandem Dual Axle Gooseneck
2-5/16” Ball Adjustable Coupler- Square Crank Type
Dual 12,000# Drop Leg Jacks (Bolted on) w/Greasable Handle
102” Overall Width
Low Profile Bed, Pierced- Beam Frame
Lockable Toolbox Between GN Uprights
(2) Side Bed Steps & Handles
3/8” Heavy Duty Rub Rail
Tie Down Pockets Along Sides, 24” On Center
1-1/4” Pipe Chain Spools Between Tie Down Pockets
Dexter Brand Axles
Oil Bath Hubs
Forward Self Adjusting Brakes
Heavy Duty 30,000# Adjustable Suspension by Dexter Axle
Torque Tube Standard on 28’ (Flat Deck) & Longer
Cambered Axles
Grommet Mount Sealed Lighting
L.E.D. Lighting Package
Modular Sealed Wiring Harness
Spare Tire Mount (Top of Neck)
5’ Dovetail w/ 5’ Double Hinged Spring Assist Flip-Over Ramps
Complete Break-A-Way System w/Charger
Radial Tires
Spare Tire & Wheel- Standard Equipped
G.V.W.R. 23,900#
G.A.W.R. (Ea. Axle) 10,000#
2-5/16” Ball Adj. Square Crank Type
Safety Chains 3/8” Grd. 70 w/Safety Latch Hook (2 each)
Dual Jack 12,000# Drop Leg Jacks (Bolted On)
Neck 12″ I-Beam, 16#
Frame 12″ I-Beam, 16#
Crossmembers 3” Channel
Side Rails 6” Channel w/Rub Rail, Tie Down Pockets on 24” Centers, and Chain Spools
(2)-10,000# Dual Wheel w/ Electric Brakes (Oil Bath)
Suspension Heavy Duty 30,000# Adjustable
ST235/80 R-16 Load Range E Dual
Wheel 16″ x 6″; Dual Wheel 8 Bolt
2″ Treated Pine or Douglas Fir*
Lights LED D.O.T. Stop, Tail, Turn, & Clearance
7-Way RV Plug
Steel is Cleaned to Ensure a Professional Smooth Finish
Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish

Also Available in:
Variety of Styles/Sizes and Options
Tandem Dual 30,000# Pintle w/Electric Brakes
Triple Axle Equipment Transport
Gooseneck or Bumper Pull
Lockable Tool Box between GN Uprights
5 Dovetail
Double Hinged Spring Assist Fold Over Ramps
Mega Ramps

**Finance and Lease Options
