Big Tex 14PH 20ft + 5ft Beaver Tail

Big Tex 14PH Tandem Axle Pintle Hitch
3” ID Pintle Ring
12,000# Drop Leg Jack- Top Wind (Bolted On)
102” Overall Width
Low Profile Bed, Pierced- Beam Frame
(2) Side Bed Steps
3/8” Heavy Duty Rub Rail
Tie Down Pockets Along Sides, 24” On Center
EZ Lube Hubs
Dexter Brand Axles
Nev-R-Adjust Electric Brakes on All Hubs Cambered Axles
Cambered Axles
Grommet Mount Sealed Lighting
L.E.D. Lighting Package
Modular Sealed Wiring Harness

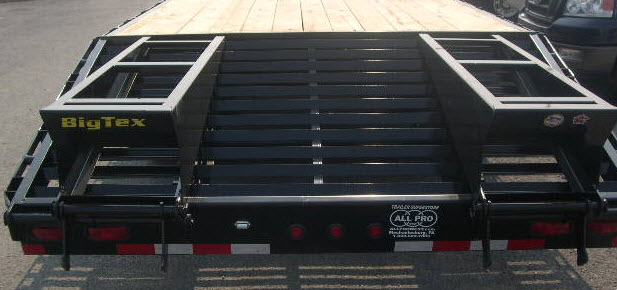

5’ Dovetail w/ 5’ Double Hinged Spring Assist
Flip-Over Ramps
Complete Break-A-Way System w/Charger
Radial Tires
Spare Tire & Wheel- Standard Equipped
G.V.W.R. 15,900#
G.A.W.R. (Ea. Axle) 7,000#
Coupler 3″ ID Pintle Ring

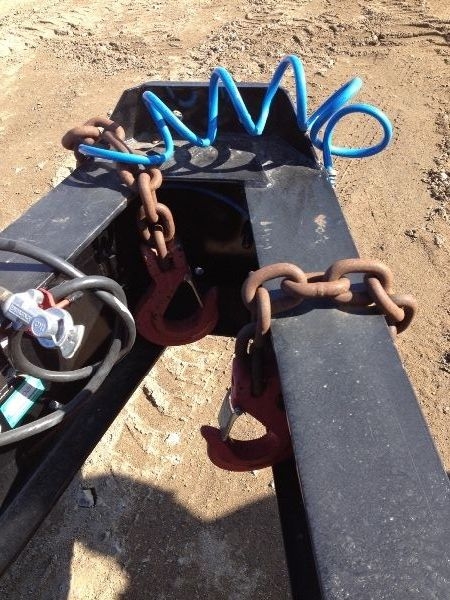

Safety Chains: 3/8” Grd. 70 w/Safety Latch Hook (2 each)
Single Jack 12,000# Top Wind (Bolted On)
Tongue 12” I-Beam; Integral with Frame
Frame 12” I-Beam
Crossmembers 3” Channel
Side Rails 5” Channel w/Rub Rail, Tie Down Pockets on 24” Centers, and Chain Spools
(2)-7,000# EZ Lube Axles w/Electric Brakes
Multi-Leaf Slipper Spring w/Equalizer
ST235/80 R-16 Load Range E
Wheel 16″ x 6″; Heavy White Mod 8 Bolt
2″ Treated Pine or Douglas Fir*
Lights L.E.D D.O.T. Stop, Tail, Turn, & Clearance
7-Way RV Plug
Steel is Cleaned to Ensure a Professional Smooth Finish
Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish

Also Available in:
Variety of Styles/Sizes and Options
Tandem Dual 30,000# Pintle w/Electric Brakes
Triple Axle Equipment Transport
Gooseneck or Bumper Pull
Lockable Tool Box between GN Uprights
5 Dovetail
Double Hinged Spring Assist Fold Over Ramps
Mega Ramps
